Kitchen Leo / Home Leo

Product Outline

Fully automatic from detection to extinguishment. The advanced system protects the life of your family and your property.

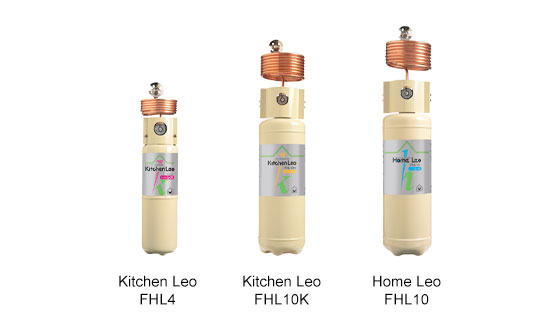

This is a home-use automatic fire extinguishing system that can automatically detects and extinguishes a fire. The fully automatic system extinguishes fires without the need to approach the fire source. Compact and easy to install and inspect, it is available in two models. One is Kitchen Leo particularly suitable for extinguishing a fire caused by tempura oil. The other is Home Leo, which is a downward discharge type for use in living rooms.

*Please note that the actual product may differ from the image shown.

Product SPEC

Please scroll sideways to view.

Product name	Kitchen Leo FHL4 (for kitchen)	Kitchen Leo FHL10K (for kitchen)	Home Leo FHL10 (for home)
Gross weight (Approx.)	3.6kg	7.8kg	7.8kg
Extinguishing agent	Loaded stream 1.5L	Loaded stream 3.0L	Loaded stream 3.0L
Total height (Approx.)	460mm	610mm	610mm
Maximum width (Approx.)	96mm	135mm	135mm
Discharge tube	Copper tube, OD 6mm x 2m	Copper tube, OD 8mm x 3m	Copper tube, OD 8mm x 3m
Discharge time (Approx.)	30sec.	27sec.	27sec.
Nominal operating temperature	Fusible metal 95℃	Fusible metal 95℃	Fusible metal 62℃

The specification is subject to change without notice.
